(C#) ASP.NET Access BLOB Binary Data and Parameterized Query

(C#) ASP.NET Access BLOB Binary Data and Parameterized Query เขียน ASP.NET เพื่อจัดการข้อมูลใน Database Access ผ่าน Binary Data ในรูปแบบของ BLOB โดยคำสั่ง Execute Add/Insert/Update และ Delete ใช้รูปแบบการส่งข้อมูล Parameter เพื่อไช้ในการ Query Data (Using Parameterized Queries)

Instance NameSpace

C#

Using System.Data;
Using System.Data.OleDb;

ASP.NET & System.Data.OleDb

https://www.thaicreate.com/asp.net/asp.net-system.data.oledb.html

โครงสร้างของฐานข้อมูล Microsoft Access

ASP.NET Access BLOB Binary Data

หรือสามารถดาวน์โหลดได้จากตัวข้างล่าง

เริ่มต้นด้วยการสร้าง Project ใหม่บน Visual Studio เลือก Application เป็น ASP.NET Web Site

ASP.NET Access BLOB Binary Data

ตั้งชื่อ Project เป็น ASPNetBLOB เลือกภาษาที่ต้องการ สามารถใช้ได้กับ .NET Framework ทุกเวอร์ชั่น

สร้างไฟล์และ Code ทั้งหมดตามในตัวอย่าง

Language Code : VB.NET ||

C#

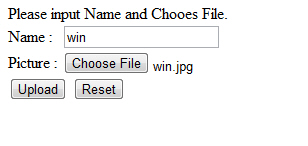

Default.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="ASPNetBLOB._Default" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>ThaiCreate.Com Tutorials</title>
</head>
<body>
    <form id="form1" runat="server">
    <div>

        <asp:Label ID="lblStatus" runat="server"
            Text="Please input Name and Chooes File. "></asp:Label>
        <br />

        <asp:Panel ID="pnlForm" Visible="true" runat="server">
            <asp:Label ID="lblName" runat="server" Text="Name :" Width="50px"></asp:Label>
            <asp:TextBox ID="txtName" runat="server"></asp:TextBox>
            <br />
            <asp:Label ID="lblPicture" runat="server" Text="Picture :" Width="50px"></asp:Label>
            <asp:FileUpload ID="fUpload" runat="server" />
            <br />
            <asp:Button ID="btnUpload" runat="server" Text="Upload"
                onclick="btnUpload_Click" />
            <input id="btnReset" type="reset" value="Reset" /></div>
       </asp:Panel>

    </form>
</body>
</html>

Default.aspx.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.OleDb;

namespace ASPNetBLOB
{
    public partial class _Default : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {

        }

        protected void btnUpload_Click(object sender, EventArgs e)
        {
            this.pnlForm.Visible = false;

            if (this.fUpload.HasFile == false | string.IsNullOrEmpty(this.txtName.Text))
            {
                this.lblStatus.Text = "Please input Name and Chooes File.";

            }
            else
            {
                //*** Read Binary Data ***'
                byte[] imbByte = new byte[fUpload.PostedFile.InputStream.Length + 1];
                fUpload.PostedFile.InputStream.Read(imbByte, 0, imbByte.Length);

                //*** MimeType ***'
                string ExtType = System.IO.Path.GetExtension(fUpload.PostedFile.FileName).ToLower();
                string strMIME = null;
                switch (ExtType)
                {
                    case ".gif":
                        strMIME = "image/gif";
                        break;
                    case ".jpg":
                    case ".jpeg":
                    case ".jpe":
                        strMIME = "image/jpeg";
                        break;
                    case ".png":
                        strMIME = "image/png";
                        break;
                    default:
                        this.lblStatus.Text = "Invalid file type.";
                        return;
                }

                //*** Insert to Database ***'
                OleDbConnection objConn = new OleDbConnection();
                string strConnString = null;
                string strSQL = null;

				strConnString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=" +
				Server.MapPath("App_Data/mydatabase.mdb")+";Jet OLEDB:Database Password=;";

                strSQL = "INSERT INTO files (Name,FilesName,FilesType) VALUES (@sName,@sFilesName,@sFilesType)";
                objConn.ConnectionString = strConnString;
                objConn.Open();

                OleDbCommand objCmd = new OleDbCommand(strSQL, objConn);
                objCmd.Parameters.Add("@sName", OleDbType.VarChar).Value = this.txtName.Text;
                objCmd.Parameters.Add("@sFilesName", OleDbType.Binary).Value = imbByte;
                objCmd.Parameters.Add("@sFilesType", OleDbType.VarChar).Value = strMIME;
                objCmd.ExecuteNonQuery();

                objConn.Close();
                objConn = null;

                this.lblStatus.Text = "File Upload Successfully. Click <a href='ListPicture.aspx'>here</a> to view.";
            }
        }

    }
}

Edit.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Edit.aspx.cs" Inherits="ASPNetBLOB.Edit" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>ThaiCreate.Com Tutorials</title>
</head>
<body>
<form id="form1" runat="server">
    <div>

        <asp:Label ID="lblStatus" runat="server"
            Text="Please input Name and Chooes File. "></asp:Label>
        <br />

        <asp:Panel ID="pnlForm" Visible="true" runat="server">
            <asp:Image ID="ImgPic" runat="server" />
            <br />
            <asp:Label ID="lblName" runat="server" Text="Name :" Width="50px"></asp:Label>
            <asp:TextBox ID="txtName" runat="server"></asp:TextBox>
            <br />
            <asp:Label ID="lblPicture" runat="server" Text="Picture :" Width="50px"></asp:Label>
            <asp:FileUpload ID="fUpload" runat="server" />
            <br />
            <asp:Button ID="btnUpload" runat="server" Text="Upload"
                onclick="btnUpload_Click" />
            <input id="btnReset" type="reset" value="Reset" />
            <asp:Button ID="btnDel" runat="server" Text="Delete" onclick="btnDel_Click"
                style="height: 26px" />
       </asp:Panel>
    </div>
    </form>
</body>
</html>

Edit.aspx.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.OleDb;

namespace ASPNetBLOB
{
    public partial class Edit : System.Web.UI.Page
    {
        OleDbConnection objConn = new OleDbConnection();
        OleDbCommand objCmd;
        string strConnString;

        string strSQL;
        protected void Page_Load(object sender, EventArgs e)
        {
            this.btnDel.Attributes.Add("OnClick", "return confirm('Are you sure delete?');");

            strConnString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=" +
            Server.MapPath("App_Data/mydatabase.mdb")+";Jet OLEDB:Database Password=;";
            objConn.ConnectionString = strConnString;
            objConn.Open();

            if (!Page.IsPostBack)
            {
                ViewData();
            }
        }

        protected void ViewData()
        {
            //*** DataTable ***'
            OleDbDataAdapter dtAdapter = default(OleDbDataAdapter);
            DataTable dt = new DataTable();
            strSQL = "SELECT * FROM files WHERE FilesID = @sFilesID ";
            dtAdapter = new OleDbDataAdapter(strSQL, objConn);
            objCmd = dtAdapter.SelectCommand;
            objCmd.Parameters.Add("@sFilesID", OleDbType.Integer).Value = Request.QueryString["FilesID"];
            dtAdapter.Fill(dt);

            if (dt.Rows.Count > 0)
            {
                this.ImgPic.ImageUrl = "ViewImg.aspx?FilesID=" + dt.Rows[0]["FilesID"];
                this.txtName.Text = dt.Rows[0]["Name"].ToString();
            }

            dt = null;
        }

        protected void btnUpload_Click(object sender, EventArgs e)
        {
            this.pnlForm.Visible = false;

            if (string.IsNullOrEmpty(this.txtName.Text))
            {
                this.lblStatus.Text = "Please input Name.";

            }
            else
            {
                //*** Update Name ***'
                strSQL = "UPDATE files SET Name = @sName WHERE FilesID = @sFilesID ";

                objCmd = new OleDbCommand(strSQL, objConn);
                objCmd.Parameters.Add("@sName", OleDbType.VarChar).Value = this.txtName.Text;
                objCmd.Parameters.Add("@sFilesID", OleDbType.Integer).Value = Request.QueryString["FilesID"];
                objCmd.ExecuteNonQuery();

                //*** Update Picture ***'
                if (this.fUpload.HasFile == true)
                {
                    //*** Read Binary Data ***'
                    byte[] imbByte = new byte[fUpload.PostedFile.InputStream.Length + 1];
                    fUpload.PostedFile.InputStream.Read(imbByte, 0, imbByte.Length);

                    //*** MimeType ***'
                    string ExtType = System.IO.Path.GetExtension(fUpload.PostedFile.FileName).ToLower();
                    string strMIME = null;
                    switch (ExtType)
                    {
                        case ".gif":
                            strMIME = "image/gif";
                            break;
                        case ".jpg":
                        case ".jpeg":
                        case ".jpe":
                            strMIME = "image/jpeg";
                            break;
                        case ".png":
                            strMIME = "image/png";
                            break;
                        default:
                            this.lblStatus.Text = "Invalid file type.";
                            return;
                    }

                    strSQL = "UPDATE files SET FilesName = @sFilesName , FilesType = @sFilesType  " + " WHERE FilesID = @sFilesID ";

                    objCmd = new OleDbCommand(strSQL, objConn);
                    objCmd.Parameters.Add("@sFilesName", OleDbType.Binary).Value = imbByte;
                    objCmd.Parameters.Add("@sFilesType", OleDbType.VarChar).Value = strMIME;
                    objCmd.Parameters.Add("@sFilesID", OleDbType.Integer).Value = Request.QueryString["FilesID"];
                    objCmd.ExecuteNonQuery();

                }

                this.lblStatus.Text = "File Upload Successfully. Click <a href='ListPicture.aspx'>here</a> to view.";
            }
        }

        protected void btnDel_Click(object sender, EventArgs e)
        {
            this.pnlForm.Visible = false;
            //*** Delete Rows ***'
            strSQL = "DELETE FROM files WHERE FilesID = @sFilesID ";

            objCmd = new OleDbCommand(strSQL, objConn);
            objCmd.Parameters.Add("@sFilesID", OleDbType.Integer).Value = Request.QueryString["FilesID"];
            objCmd.ExecuteNonQuery();
            this.lblStatus.Text = "Delete Successfully. Click <a href='ListPicture.aspx'>here</a> to view.";

        }

        protected void Page_Unload(object sender, System.EventArgs e)
        {
            objConn.Close();
            objConn = null;
        }

    }
}

ListPicture.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="ListPicture.aspx.cs" Inherits="ASPNetBLOB.ListPicture" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>ThaiCreate.Com Tutorials</title>
</head>
<body>
    <form id="form1" runat="server">
    <div>

 <asp:GridView id="myGridView" runat="server" AutoGenerateColumns="False"
            onrowdatabound="myGridView_RowDataBound">
	<Columns>
	<asp:TemplateField HeaderText="ID">
		<ItemTemplate>
			<asp:Label id="lblFilesID" runat="server"></asp:Label>
		</ItemTemplate>
	</asp:TemplateField>

	<asp:TemplateField HeaderText="Name">
		<ItemTemplate>
			<asp:Label id="lblName" runat="server"></asp:Label>
		</ItemTemplate>
	</asp:TemplateField>

	<asp:TemplateField HeaderText="Picture">
		<ItemTemplate>
			<asp:Image ID="ImgPic" runat="server" />
		</ItemTemplate>
	</asp:TemplateField>

	<asp:TemplateField HeaderText="Edit">
		<ItemTemplate>
            <asp:HyperLink ID="hplEdit" runat="server">Edit</asp:HyperLink>
        </ItemTemplate>
	</asp:TemplateField>

	</Columns>
</asp:GridView>

    </div>
    </form>
</body>
</html>

ListPicture.aspx.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.OleDb;

namespace ASPNetBLOB
{
    public partial class ListPicture : System.Web.UI.Page
    {
        OleDbConnection objConn;
        OleDbCommand objCmd;
        protected void Page_Load(object sender, EventArgs e)
        {
            string strConnString = null;
            strConnString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=" +
            Server.MapPath("App_Data/mydatabase.mdb")+";Jet OLEDB:Database Password=;";
            objConn = new OleDbConnection(strConnString);
            objConn.Open();

            BindData();
        }

        protected void BindData()
        {
            string strSQL = null;
            strSQL = "SELECT * FROM files ORDER BY FilesID ASC";

            OleDbDataReader dtReader = default(OleDbDataReader);
            objCmd = new OleDbCommand(strSQL, objConn);
            dtReader = objCmd.ExecuteReader();

            //*** BindData to GridView ***'
            myGridView.DataSource = dtReader;
            myGridView.DataBind();

            dtReader.Close();
            dtReader = null;
        }

        protected void myGridView_RowDataBound(object sender, GridViewRowEventArgs e)
        {
            //*** FilesID ***'
            Label lblFilesID = (Label)e.Row.FindControl("lblFilesID");
            if ((lblFilesID != null))
            {
                lblFilesID.Text = DataBinder.Eval(e.Row.DataItem, "FilesID").ToString();
            }

            //*** Name ***'
            Label lblName = (Label)e.Row.FindControl("lblName");
            if ((lblName != null))
            {
                lblName.Text = DataBinder.Eval(e.Row.DataItem, "Name").ToString();
            }

            //*** Picture ***'
            Image ImgPic = (Image)e.Row.FindControl("ImgPic");
            if ((ImgPic != null))
            {
                ImgPic.ImageUrl = "ViewImg.aspx?FilesID= " + DataBinder.Eval(e.Row.DataItem, "FilesID").ToString();
            }

            //*** Hyperlink ***'
            HyperLink hplEdit = (HyperLink)e.Row.FindControl("hplEdit");
            if ((hplEdit != null))
            {
                hplEdit.Text = "Edit";
                hplEdit.NavigateUrl = "Edit.aspx?FilesID=" + DataBinder.Eval(e.Row.DataItem, "FilesID").ToString();
            }
        }

        protected void Page_Unload(object sender, EventArgs e)
        {
            objConn.Close();
            objConn = null;
        }
    }
}

ViewImg.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="ViewImg.aspx.cs" Inherits="ASPNetBLOB.ViewImg" %>

ViewImg.aspx.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.OleDb;

namespace ASPNetBLOB
{
    public partial class ViewImg : System.Web.UI.Page
    {
        OleDbConnection objConn = new OleDbConnection();
        OleDbCommand objCmd;
        string strConnString;
        string strSQL;

        protected void Page_Load(object sender, EventArgs e)
        {
            strConnString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=" +
            Server.MapPath("App_Data/mydatabase.mdb")+";Jet OLEDB:Database Password=;";
            objConn.ConnectionString = strConnString;
            objConn.Open();

            //*** DataTable ***'
            OleDbDataAdapter dtAdapter = default(OleDbDataAdapter);
            DataTable dt = new DataTable();
            strSQL = "SELECT * FROM files WHERE FilesID = @sFilesID ";
            dtAdapter = new OleDbDataAdapter(strSQL, objConn);
            objCmd = dtAdapter.SelectCommand;
            objCmd.Parameters.Add("@sFilesID", OleDbType.Integer).Value = Request.QueryString["FilesID"].ToString();
            dtAdapter.Fill(dt);

            if (dt.Rows.Count > 0)
            {
                Response.ContentType = dt.Rows[0]["FilesType"].ToString();
                Response.BinaryWrite((byte[])dt.Rows[0]["FilesName"]);
            }

            dt = null;
        }

        protected void Page_Unload(object sender, System.EventArgs e)
        {
            objConn.Close();
            objConn = null;
        }
    }
}

Screenshot

ASP.NET Access BLOB Binary Data

หน้าจอสำหรับอัพโหลด (Upload Binary) ข้อมูลลงใน BLOB

ASP.NET Access BLOB Binary Data

หน้าจอสำหรับแสดงข้อมูล (View BLOB)

ASP.NET Access BLOB Binary Data

หน้าจอสำหรับแก้ไขข้อมูล (Edit BLOB)

ASP.NET Access BLOB Binary Data

หน้าจอสำหรับการลบข้อมูล (Delete BLOB)

ASP.NET System.Data.OleDb - Parameter Query

https://www.thaicreate.com/asp.net/asp.net-system.data.oledb-parameter-query.html

ASP.NET & System.Data.OleDb

https://www.thaicreate.com/asp.net/asp.net-system.data.oledb.html

ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน Source Code 2.0 ของทีมงานไทยครีเอท

ลองใช้ค้นหาข้อมูล


	By :	ThaiCreate.Com Team (บทความเป็นลิขสิทธิ์ของเว็บไทยครีเอทห้ามนำเผยแพร่ ณ เว็บไซต์อื่น ๆ)
	Score Rating :
	Create/Update Date :	2011-06-02 13:23:16 / 2017-03-29 09:52:48
	Download :

Sponsored Links / Related

(C#) ASP.NET Microsoft Access Connect to Database
Rating :

(C#) ASP.NET Microsoft Access List Table Properties
Rating :

(C#) ASP.NET Microsoft Access List Record
Rating :

(C#) ASP.NET Microsoft Access & Odbc (System.Data.Odbc)
Rating :

(C#) ASP.NET Microsoft Access Random Record
Rating :

(C#) ASP.NET Microsoft Access List Record Paging/Pagination
Rating :

(C#) ASP.NET Microsoft Access Search Record
Rating :

(C#) ASP.NET Microsoft Access Search Record Paging/Pagination
Rating :

(C#) ASP.NET Microsoft Access Add/Insert Record
Rating :

(C#) ASP.NET Microsoft Access Add-Insert Multiple Record
Rating :

(C#) ASP.NET Microsoft Access Check Already Exists Add/Insert Record
Rating :

(C#) ASP.NET Microsoft Access Transaction (BeginTransaction,Commit,Rollback)
Rating :

(C#) ASP.NET Microsoft Access Edit/Update Record
Rating :

(C#) ASP.NET Microsoft Access Delete Record
Rating :

(C#) ASP.NET Microsoft Access Multiple Checkbox Delete Record
Rating :

(C#) ASP.NET Microsoft Access and GridView, DataSource
Rating :

(C#) ASP.NET Microsoft Access Database Class
Rating :

(C#) ASP.NET Microsoft Access Database Class (Visual Studio .Net 2003 - .NET 1.1)
Rating :

(C#) ASP.NET Microsoft Access Database Class (Visual Studio 2005,2008,2010 - .NET 2.0,3.5,4.0)
Rating :

(C#) ASP.NET Access BLOB Binary Data and Parameterized Query
Rating :

สอน Windows Phone การเขียนโปรแกรม Windows Phone 7 และ 8

สอน Java GUI การเขียนโปรแกรม ภาษา Java GUI

Free Tutorial

	สอน Google Maps Api
	สอน Windows Service
	สอน Entity Framework
	สอน Android
	สอน Java เขียน Java
	Java GUI Swing
	สอน JSP (Web App)
	iOS (iPhone,iPad)
	Windows Phone
	Windows Azure
	Windows Store
	Laravel Framework
	Yii PHP Framework
	สอน jQuery
	สอน jQuery กับ Ajax
	สอน PHP OOP (Vdo)
	Ajax Tutorials
	SQL Tutorials
	สอน SQL (Part 2)
	JavaScript Tutorial
	Javascript Tips
	VBScript Tutorial
	VBScript Validation
	Microsoft Access
	MySQL Tutorials
	-- Stored Procedure
	MariaDB Database
	SQL Server Tutorial
	SQL Server 2005
	SQL Server 2008
	SQL Server 2012
	-- Stored Procedure
	Oracle Database
	-- Stored Procedure
	SVN (Subversion)
	แนวทางการทำ SEO
	ปรับแต่งเว็บให้โหลดเร็ว
