Android JSON Retrieving Data from URL Web Server (PHP MySQL and JSON) |
Android JSON Retrieving Data from URL (PHP MySQL and JSON)L ตัวอย่างการเขียน Android เพื่ออ่าน JSON Code ที่อยู่ในรูปแบบของ URL Website จากแหล่งต่าง ๆ โดย Android จะใช้ HttpPost และ HttpGet ในการอ่านข้อความ JSON ที่ถูกส่งมาพร้อมกับ URL ที่ได้ทำการ Request ไปที่ Web Server ผ่าน HTTP Method จากนั้นเมื่อได้ค่า JSON แล้วก็จะทำการแปลงข้อความ JSON ที่ได้ให้อยู่ในรูปแบบของ Array และนำ Array ที่ได้แสดงผลข้อมูลบน ListView
Basic Android and JSON
รูปอธิบายการทำงานระหว่าง Android กับ JSON Code ที่อยู่บน Internet Web Server
AndroidManifest.xml
<uses-permission android:name="android.permission.INTERNET" />
ในการเขียน Android เพื่อติดต่อกับ Internet จะต้องกำหนด Permission ในส่วนนี้ด้วยทุกครั้ง
Example 1 การอ่าน JSON จาก URL และแสดงผลบน ListView แบบง่าย ๆ
Web Server (PHP and MySQL)
member
CREATE TABLE `member` (
`MemberID` int(2) NOT NULL,
`Name` varchar(50) NOT NULL,
`Tel` varchar(50) NOT NULL,
PRIMARY KEY (`MemberID`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;
--
-- Dumping data for table `member`
--
INSERT INTO `member` VALUES (1, 'Weerachai', '0819876107');
INSERT INTO `member` VALUES (2, 'Win', '021978032');
INSERT INTO `member` VALUES (3, 'Eak', '0876543210');
โครงสร้างของข้อมูล MySQL Database
getJSON.php
<?php
$objConnect = mysql_connect("localhost","root","root");
$objDB = mysql_select_db("mydatabase");
$strSQL = "SELECT * FROM member WHERE 1 ";
$objQuery = mysql_query($strSQL);
$intNumField = mysql_num_fields($objQuery);
$resultArray = array();
while($obResult = mysql_fetch_array($objQuery))
{
$arrCol = array();
for($i=0;$i<$intNumField;$i++)
{
$arrCol[mysql_field_name($objQuery,$i)] = $obResult[$i];
}
array_push($resultArray,$arrCol);
}
mysql_close($objConnect);
echo json_encode($resultArray);
?>
JSON Result
[{"MemberID":"1","Name":"Weerachai","Tel":"0819876107"},{"MemberID":"2","Name":"Win","Tel":"021978032"},{"MemberID":"3","Name":"Eak","Tel":"0876543210"}]
Android Project
โครงสร้างของไฟล์ประกอบด้วย 3 ไฟล์คือ MainActivity.java, activity_main.xml และ activity_column.xml
activity_main.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/tableLayout1"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<TableRow
android:id="@+id/tableRow1"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >
<TextView
android:id="@+id/textView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:gravity="center"
android:text="JSON Example : "
android:layout_span="1"
android:textAppearance="?android:attr/textAppearanceLarge" />
</TableRow>
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<LinearLayout
android:orientation="horizontal"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_weight="0.1">
<ListView
android:id="@+id/listView1"
android:layout_width="match_parent"
android:layout_height="wrap_content">
</ListView>
</LinearLayout>
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<LinearLayout
android:id="@+id/LinearLayout1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="5dip" >
<TextView
android:id="@+id/textView2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="By.. ThaiCreate.Com" />
</LinearLayout>
</TableLayout>
activity_column.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/linearLayout1"
android:layout_width="fill_parent"
android:layout_height="fill_parent" >
<TextView
android:id="@+id/ColMemberID"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="MemberID"/>
<TextView
android:id="@+id/ColName"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="2"
android:text="Name"/>
<TextView
android:id="@+id/ColTel"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Tel" />
</LinearLayout>
MainActivity.java
package com.myapp;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.util.ArrayList;
import java.util.HashMap;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;
import android.os.Bundle;
import android.os.StrictMode;
import android.app.Activity;
import android.app.AlertDialog;
import android.content.DialogInterface;
import android.util.Log;
import android.view.View;
import android.view.Menu;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ListView;
import android.widget.SimpleAdapter;
public class MainActivity extends Activity {
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
// Permission StrictMode
if (android.os.Build.VERSION.SDK_INT > 9) {
StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
StrictMode.setThreadPolicy(policy);
}
// listView1
final ListView lisView1 = (ListView)findViewById(R.id.listView1);
/** JSON return
* [{"MemberID":"1","Name":"Weerachai","Tel":"0819876107"},
* {"MemberID":"2","Name":"Win","Tel":"021978032"},
* {"MemberID":"3","Name":"Eak","Tel":"0876543210"}]
*/
String url = "https://www.thaicreate.com/android/getJSON.php";
try {
JSONArray data = new JSONArray(getJSONUrl(url));
final ArrayList<HashMap<String, String>> MyArrList = new ArrayList<HashMap<String, String>>();
HashMap<String, String> map;
for(int i = 0; i < data.length(); i++){
JSONObject c = data.getJSONObject(i);
map = new HashMap<String, String>();
map.put("MemberID", c.getString("MemberID"));
map.put("Name", c.getString("Name"));
map.put("Tel", c.getString("Tel"));
MyArrList.add(map);
}
SimpleAdapter sAdap;
sAdap = new SimpleAdapter(MainActivity.this, MyArrList, R.layout.activity_column,
new String[] {"MemberID", "Name", "Tel"}, new int[] {R.id.ColMemberID, R.id.ColName, R.id.ColTel});
lisView1.setAdapter(sAdap);
final AlertDialog.Builder viewDetail = new AlertDialog.Builder(this);
// OnClick Item
lisView1.setOnItemClickListener(new OnItemClickListener() {
public void onItemClick(AdapterView<?> myAdapter, View myView,
int position, long mylng) {
String sMemberID = MyArrList.get(position).get("MemberID")
.toString();
String sName = MyArrList.get(position).get("Name")
.toString();
String sTel = MyArrList.get(position).get("Tel")
.toString();
//String sMemberID = ((TextView) myView.findViewById(R.id.ColMemberID)).getText().toString();
// String sName = ((TextView) myView.findViewById(R.id.ColName)).getText().toString();
// String sTel = ((TextView) myView.findViewById(R.id.ColTel)).getText().toString();
viewDetail.setIcon(android.R.drawable.btn_star_big_on);
viewDetail.setTitle("Member Detail");
viewDetail.setMessage("MemberID : " + sMemberID + "\n"
+ "Name : " + sName + "\n" + "Tel : " + sTel);
viewDetail.setPositiveButton("OK",
new DialogInterface.OnClickListener() {
public void onClick(DialogInterface dialog,
int which) {
// TODO Auto-generated method stub
dialog.dismiss();
}
});
viewDetail.show();
}
});
} catch (JSONException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
public String getJSONUrl(String url) {
StringBuilder str = new StringBuilder();
HttpClient client = new DefaultHttpClient();
HttpGet httpGet = new HttpGet(url);
try {
HttpResponse response = client.execute(httpGet);
StatusLine statusLine = response.getStatusLine();
int statusCode = statusLine.getStatusCode();
if (statusCode == 200) { // Download OK
HttpEntity entity = response.getEntity();
InputStream content = entity.getContent();
BufferedReader reader = new BufferedReader(new InputStreamReader(content));
String line;
while ((line = reader.readLine()) != null) {
str.append(line);
}
} else {
Log.e("Log", "Failed to download result..");
}
} catch (ClientProtocolException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
return str.toString();
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
}
Screenshot

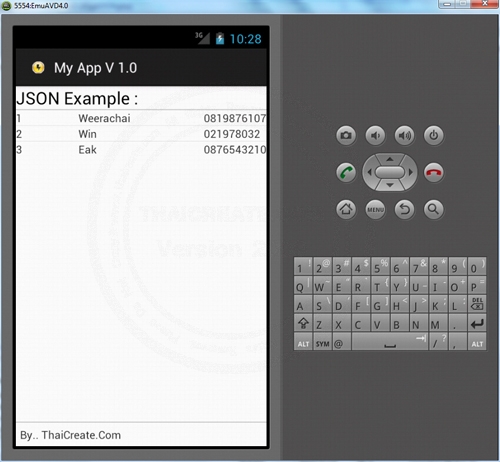

แสดงค่า JSON จาก URL บน ListView

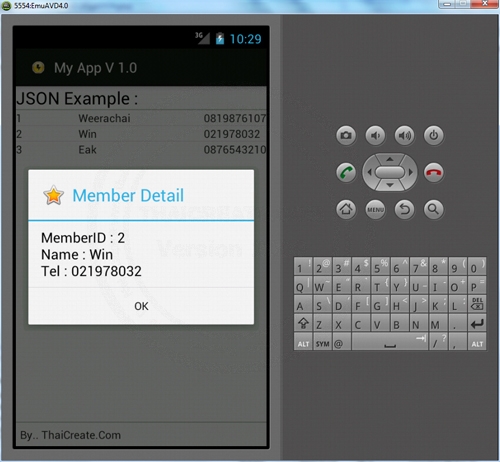

แสดงรายละเอียดของข้อมูลในแต่ล่ะรายการของ JSON Code
Example 2 การอ่าน JSON Code และแสดงรูปภาพ Image ที่อยู่ใน Web Server
อ่าน JSON Code และแสดงรูปภาพที่อยู่บน Web Server โดยอ้างจากข้อมูลที่มาพร้อมกับ JSON
Web Server (PHP and MySQL)
CREATE TABLE `image` (
`ImageID` int(11) NOT NULL,
`ImageDesc` varchar(50) NOT NULL,
`ImagePath` varchar(150) NOT NULL,
PRIMARY KEY (`ImageID`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;
--
-- Dumping data for table `image`
--
INSERT INTO `image` VALUES (1, 'My Sea View 1', 'https://www.thaicreate.com/android/pic_a.png');
INSERT INTO `image` VALUES (2, 'My Sea View 2', 'https://www.thaicreate.com/android/pic_b.png');
INSERT INTO `image` VALUES (3, 'My Sea View 3', 'https://www.thaicreate.com/android/pic_c.png');
INSERT INTO `image` VALUES (4, 'My Sea View 4', 'https://www.thaicreate.com/android/pic_d.png');

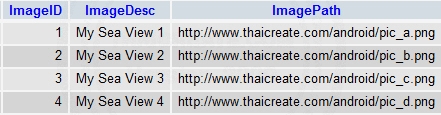

โครงสร้าของ MySQL Database
จาก Database จะเห็นว่าใน Column ของ ImagePath จะมี URL ที่เก็บข้อมูลของรูปภาพไว้ เพราะฉะนั้น Path ที่เรียกรูปภาพจะต้องมีรูปภาพอยู่จริง ๆ
getJSON.php
<?php
$objConnect = mysql_connect("localhost","root","root");
$objDB = mysql_select_db("mydatabase");
$strSQL = "SELECT * FROM image WHERE 1 ";
$objQuery = mysql_query($strSQL);
$intNumField = mysql_num_fields($objQuery);
$resultArray = array();
while($obResult = mysql_fetch_array($objQuery))
{
$arrCol = array();
for($i=0;$i<$intNumField;$i++)
{
$arrCol[mysql_field_name($objQuery,$i)] = $obResult[$i];
}
array_push($resultArray,$arrCol);
}
mysql_close($objConnect);
echo json_encode($resultArray);
?>
Android Project
โครงสร้างของไฟล์ประกอบด้วย 4 ไฟล์คือ MainActivity.java, activity_main.xml, activity_column.xml และ custom_fullimage_dialog.xml
activity_main.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/tableLayout1"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<TableRow
android:id="@+id/tableRow1"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >
<TextView
android:id="@+id/textView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:gravity="center"
android:text="ListView Example : "
android:layout_span="1"
android:textAppearance="?android:attr/textAppearanceLarge" />
</TableRow>
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<LinearLayout
android:orientation="horizontal"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_weight="0.1">
<ListView
android:id="@+id/listView1"
android:layout_width="match_parent"
android:layout_height="wrap_content">
</ListView>
</LinearLayout>
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<LinearLayout
android:id="@+id/LinearLayout1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="5dip" >
<TextView
android:id="@+id/textView2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="By.. ThaiCreate.Com" />
</LinearLayout>
</TableLayout>
activity_column.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/tableLayout1"
android:layout_width="fill_parent"
android:layout_height="fill_parent" >
<TableRow
android:id="@+id/tableRow3"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >
<ImageView
android:id="@+id/ColImgPath"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
/>
<TextView
android:id="@+id/ColImgID"
android:text="Column 1" />
<TextView
android:id="@+id/ColImgDesc"
android:text="Column 2" />
</TableRow>
</TableLayout>
custom_fullimage_dialog.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/layout_root"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:orientation="horizontal"
android:padding="10dp" >
<ImageView
android:id="@+id/fullimage"
android:layout_width="match_parent"
android:layout_height="241dp" />
<TextView android:id="@+id/custom_fullimage_placename"
android:layout_width="wrap_content" android:layout_height="fill_parent"
android:textColor="#FFF">
</TextView>
</LinearLayout>
MainActivity.java
package com.myapp;
import java.io.BufferedInputStream;
import java.io.BufferedOutputStream;
import java.io.BufferedReader;
import java.io.ByteArrayOutputStream;
import java.io.Closeable;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.net.URL;
import java.util.ArrayList;
import java.util.HashMap;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;
import android.os.Bundle;
import android.os.StrictMode;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.AlertDialog;
import android.content.Context;
import android.content.DialogInterface;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
public class MainActivity extends Activity {
@SuppressLint("NewApi")
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
// Permission StrictMode
if (android.os.Build.VERSION.SDK_INT > 9) {
StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
StrictMode.setThreadPolicy(policy);
}
// listView1
final ListView lstView1 = (ListView)findViewById(R.id.listView1);
/** JSON from URL
* [
* {"ImageID":"1","ImageDesc":"My Sea View 1","ImagePath":"https://www.thaicreate.com/android/pic_a.png"},
* {"ImageID":"2","ImageDesc":"My Sea View 2","ImagePath":"https://www.thaicreate.com/android/pic_b.png"},
* {"ImageID":"3","ImageDesc":"My Sea View 3","ImagePath":"https://www.thaicreate.com/android/pic_c.png"},
* {"ImageID":"4","ImageDesc":"My Sea View 4","ImagePath":"https://www.thaicreate.com/android/pic_d.png"}
* ]
*/
String url = "https://www.thaicreate.com/android/getJSON.php";
try {
JSONArray data = new JSONArray(getJSONUrl(url));
final ArrayList<HashMap<String, String>> MyArrList = new ArrayList<HashMap<String, String>>();
HashMap<String, String> map;
for(int i = 0; i < data.length(); i++){
JSONObject c = data.getJSONObject(i);
map = new HashMap<String, String>();
map.put("ImageID", c.getString("ImageID"));
map.put("ImageDesc", c.getString("ImageDesc"));
map.put("ImagePath", c.getString("ImagePath"));
MyArrList.add(map);
}
lstView1.setAdapter(new ImageAdapter(this,MyArrList));
final AlertDialog.Builder imageDialog = new AlertDialog.Builder(this);
final LayoutInflater inflater = (LayoutInflater) this.getSystemService(LAYOUT_INFLATER_SERVICE);
// OnClick
lstView1.setOnItemClickListener(new OnItemClickListener() {
public void onItemClick(AdapterView<?> parent, View v,
int position, long id) {
View layout = inflater.inflate(R.layout.custom_fullimage_dialog,
(ViewGroup) findViewById(R.id.layout_root));
ImageView image = (ImageView) layout.findViewById(R.id.fullimage);
try
{
image.setImageBitmap(loadBitmap(MyArrList.get(position).get("ImagePath")));
} catch (Exception e) {
// When Error
image.setImageResource(android.R.drawable.ic_menu_report_image);
}
imageDialog.setIcon(android.R.drawable.btn_star_big_on);
imageDialog.setTitle("View : " + MyArrList.get(position).get("ImageDesc"));
imageDialog.setView(layout);
imageDialog.setPositiveButton(android.R.string.ok, new DialogInterface.OnClickListener(){
public void onClick(DialogInterface dialog, int which) {
dialog.dismiss();
}
});
imageDialog.create();
imageDialog.show();
}
});
} catch (JSONException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
public class ImageAdapter extends BaseAdapter
{
private Context context;
private ArrayList<HashMap<String, String>> MyArr = new ArrayList<HashMap<String, String>>();
public ImageAdapter(Context c, ArrayList<HashMap<String, String>> list)
{
// TODO Auto-generated method stub
context = c;
MyArr = list;
}
public int getCount() {
// TODO Auto-generated method stub
return MyArr.size();
}
public Object getItem(int position) {
// TODO Auto-generated method stub
return position;
}
public long getItemId(int position) {
// TODO Auto-generated method stub
return position;
}
public View getView(int position, View convertView, ViewGroup parent) {
// TODO Auto-generated method stub
LayoutInflater inflater = (LayoutInflater) context
.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
if (convertView == null) {
convertView = inflater.inflate(R.layout.activity_column, null);
}
// ColImage
ImageView imageView = (ImageView) convertView.findViewById(R.id.ColImgPath);
imageView.getLayoutParams().height = 100;
imageView.getLayoutParams().width = 100;
imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
try
{
imageView.setImageBitmap(loadBitmap(MyArr.get(position).get("ImagePath")));
} catch (Exception e) {
// When Error
imageView.setImageResource(android.R.drawable.ic_menu_report_image);
}
// ColPosition
TextView txtPosition = (TextView) convertView.findViewById(R.id.ColImgID);
txtPosition.setPadding(10, 0, 0, 0);
txtPosition.setText("ID : " + MyArr.get(position).get("ImageID"));
// ColPicname
TextView txtPicName = (TextView) convertView.findViewById(R.id.ColImgDesc);
txtPicName.setPadding(50, 0, 0, 0);
txtPicName.setText("Desc : " + MyArr.get(position).get("ImageDesc"));
return convertView;
}
}
/*** Get JSON Code from URL ***/
public String getJSONUrl(String url) {
StringBuilder str = new StringBuilder();
HttpClient client = new DefaultHttpClient();
HttpGet httpGet = new HttpGet(url);
try {
HttpResponse response = client.execute(httpGet);
StatusLine statusLine = response.getStatusLine();
int statusCode = statusLine.getStatusCode();
if (statusCode == 200) { // Download OK
HttpEntity entity = response.getEntity();
InputStream content = entity.getContent();
BufferedReader reader = new BufferedReader(new InputStreamReader(content));
String line;
while ((line = reader.readLine()) != null) {
str.append(line);
}
} else {
Log.e("Log", "Failed to download file..");
}
} catch (ClientProtocolException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
return str.toString();
}
/***** Get Image Resource from URL (Start) *****/
private static final String TAG = "ERROR";
private static final int IO_BUFFER_SIZE = 4 * 1024;
public static Bitmap loadBitmap(String url) {
Bitmap bitmap = null;
InputStream in = null;
BufferedOutputStream out = null;
try {
in = new BufferedInputStream(new URL(url).openStream(), IO_BUFFER_SIZE);
final ByteArrayOutputStream dataStream = new ByteArrayOutputStream();
out = new BufferedOutputStream(dataStream, IO_BUFFER_SIZE);
copy(in, out);
out.flush();
final byte[] data = dataStream.toByteArray();
BitmapFactory.Options options = new BitmapFactory.Options();
//options.inSampleSize = 1;
bitmap = BitmapFactory.decodeByteArray(data, 0, data.length,options);
} catch (IOException e) {
Log.e(TAG, "Could not load Bitmap from: " + url);
} finally {
closeStream(in);
closeStream(out);
}
return bitmap;
}
private static void closeStream(Closeable stream) {
if (stream != null) {
try {
stream.close();
} catch (IOException e) {
android.util.Log.e(TAG, "Could not close stream", e);
}
}
}
private static void copy(InputStream in, OutputStream out) throws IOException {
byte[] b = new byte[IO_BUFFER_SIZE];
int read;
while ((read = in.read(b)) != -1) {
out.write(b, 0, read);
}
}
/***** Get Image Resource from URL (End) *****/
@Override
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
}
Screenshot

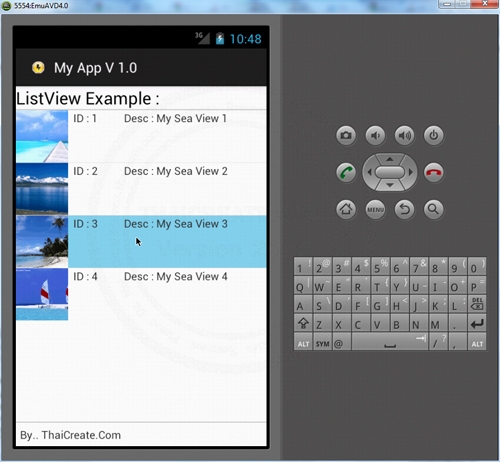

แสดงข้อมูล JSON และรูปภาพ Image ที่อยู่บน Web Server

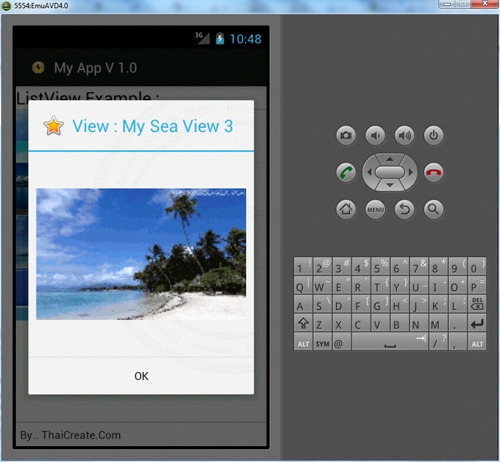

แสดงรายละเอียดของรูปภาพ เมื่อคลิกในแต่ล่ะ Items
Android HttpGet and HttpPost
Basic Android and JSON
Basic Android and Web Service
|
