Android Loading JSON and ProgressBar/ProgressDialog |
Android Loading JSON and ProgressBar/ProgressDialog บทความนี้ค่อนข้างจะ Advanced จะเป็นการเขียน Android เพื่อดึงข้อมูลจาก Server ในรูปแบบของ JSON และการแสดงข้อมูลอื่น ๆ จาก Server เช่นรูปภาพ แสดงผลใน ImageView ของ Column โดยในขณะที่กำลังโหลดข้อมูลจาก Server จะใช้ ProgressBar และ ProgressDialog ควบคุมการแสดงสถานะการทำงานในแต่ล่ะขั้นตอน
ในตัวอย่างนี้จะแบ่งการทำงานเป็น 2 ขั้นตอนคือ

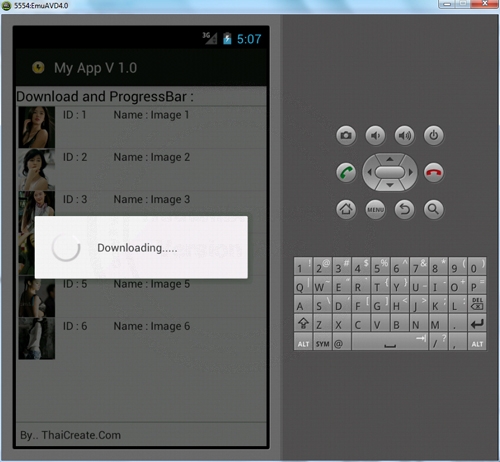

- โหลดข้อมูลแต่ล่ะรายการมาแสดงใน ListView (ในขณะที่โหลดข้อมูลจะแสดง ProgressBar)

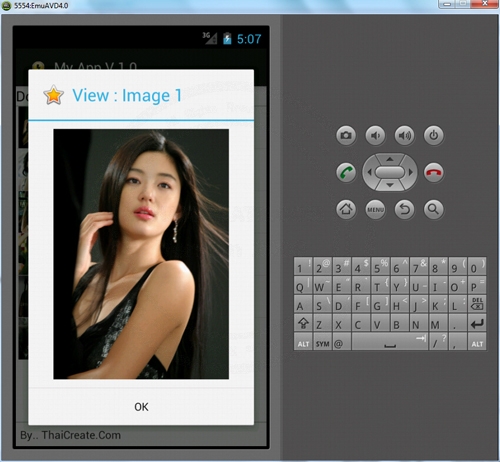

- เมื่อคลิกแต่ล่ะ Item ของ ListView แสดง Full Image (ในขณะที่โหลดข้อมูลจะแสดง ProgressBar)
โดยใน Column ของ ListView ที่เป็น ImageView จะแสดงภาพที่เป็น Thumbnail และเมื่อคลิกแต่ล่ะ Items จะแสดงภาพจาก Full Photo

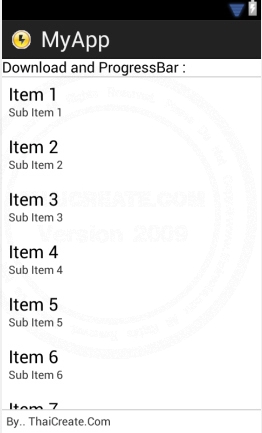

รูปภาพประกอบแสดงตัวอย่างการทำงาน และการแสดง ProgressBar ในขณะที่กำลังโหลดข้อมูลจาก Server
AndroidManifest.xml
<uses-permission android:name="android.permission.INTERNET" />
ในการเขียน Android เพื่อติดต่อกับ Internet จะต้องกำหนด Permission ในส่วนนี้ด้วยทุกครั้ง
Web Server
ชื่อตางราง MySQL ว่า images โดยจัดเก็บชื่อรุปภาพ และ Path ของ Thumbnail , FullPhoto
images
CREATE TABLE IF NOT EXISTS `images` (
`ImageID` int(11) NOT NULL auto_increment,
`ImageName` varchar(50) NOT NULL,
`ImagePath_Thumbnail` varchar(150) NOT NULL,
`ImagePath_FullPhoto` varchar(150) NOT NULL,
PRIMARY KEY (`ImageID`)
) ENGINE=MyISAM AUTO_INCREMENT=7 ;
--
-- Dumping data for table `images`
--
INSERT INTO `images` (`ImageID`, `ImageName`, `ImagePath_Thumbnail`, `ImagePath_FullPhoto`) VALUES
(1, 'Image 1', 'https://www.thaicreate.com/android/img1_thum.jpg', 'https://www.thaicreate.com/android/img1_full.jpg'),
(2, 'Image 2', 'https://www.thaicreate.com/android/img2_thum.jpg', 'https://www.thaicreate.com/android/img2_full.jpg'),
(3, 'Image 3', 'https://www.thaicreate.com/android/img3_thum.jpg', 'https://www.thaicreate.com/android/img3_full.jpg'),
(4, 'Image 4', 'https://www.thaicreate.com/android/img4_thum.jpg', 'https://www.thaicreate.com/android/img4_full.jpg'),
(5, 'Image 5', 'https://www.thaicreate.com/android/img5_thum.jpg', 'https://www.thaicreate.com/android/img5_full.jpg'),
(6, 'Image 6', 'https://www.thaicreate.com/android/img6_thum.jpg', 'https://www.thaicreate.com/android/img6_full.jpg');

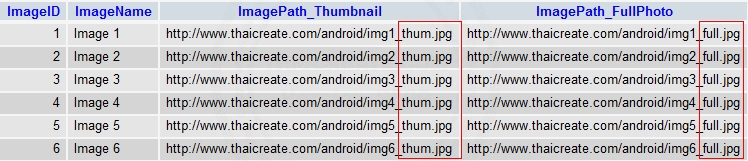

โครงสร้างของ MySQL Database

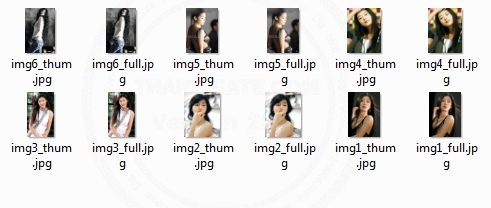

ไฟล์รุปภาพที่ถูกจัดเก็บไว้ใน Web Server

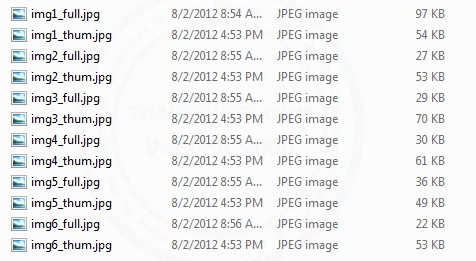

จะเห็นว่าไฟล์ Thumbnail และ Full จะมีขนาดและ Size ที่ต่างกัน
getJSON.php
<?php
$objConnect = mysql_connect("localhost","root","root");
$objDB = mysql_select_db("mydatabase");
$strSQL = "SELECT * FROM images WHERE 1 ";
$objQuery = mysql_query($strSQL);
$intNumField = mysql_num_fields($objQuery);
$resultArray = array();
while($obResult = mysql_fetch_array($objQuery))
{
$arrCol = array();
for($i=0;$i<$intNumField;$i++)
{
$arrCol[mysql_field_name($objQuery,$i)] = $obResult[$i];
}
array_push($resultArray,$arrCol);
}
mysql_close($objConnect);
echo json_encode($resultArray);
?>
ไฟล์ php ในฝั่ง Server ที่จะส่งข้อมูลให้กับ Android
Android HttpGet and HttpPost
พื้นฐานให้อ่านบทความ HttpGet กับ HttpPost จะได้เข้าใจง่ายขึ้
Android Project

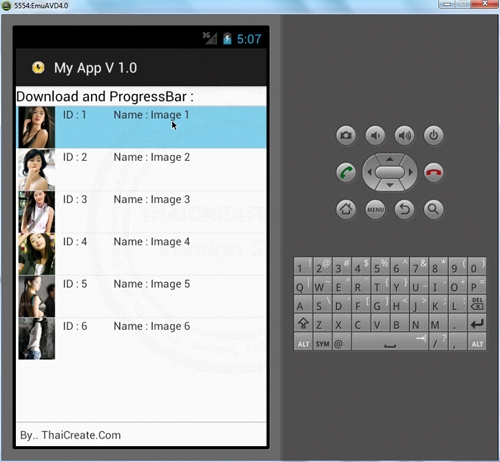

Example 1 แสดงข้อมูลจาก Web Server ทั้งข้อความและรูปภาพลงในรายการของ ListView
โครงสร้างของไฟล์ประกอบด้วย 3 ไฟล์คือ MainActivity.java, activity_main.xml และ activity_column.xml
activity_main.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/tableLayout1"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<TableRow
android:id="@+id/tableRow1"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >
<TextView
android:id="@+id/textView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:gravity="center"
android:text="Download and ProgressBar : "
android:layout_span="1"
android:textAppearance="?android:attr/textAppearanceMedium" />
</TableRow>
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<LinearLayout
android:orientation="horizontal"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_weight="0.1">
<ListView
android:id="@+id/listView1"
android:layout_width="match_parent"
android:layout_height="wrap_content">
</ListView>
</LinearLayout>
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<LinearLayout
android:id="@+id/LinearLayout1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="5dip" >
<TextView
android:id="@+id/textView2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="By.. ThaiCreate.Com" />
</LinearLayout>
</TableLayout>
activity_column.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/tableLayout1"
android:layout_width="fill_parent"
android:layout_height="fill_parent" >
<TableRow
android:layout_width="wrap_content"
android:layout_height="wrap_content" >
<ImageView
android:id="@+id/ColImgPath"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
/>
<TextView
android:id="@+id/ColImgID"
android:text="Column 1" />
<TextView
android:id="@+id/ColImgName"
android:text="Column 2" />
</TableRow>
</TableLayout>
MainActivity.java
package com.myapp;
import java.io.BufferedInputStream;
import java.io.BufferedOutputStream;
import java.io.BufferedReader;
import java.io.ByteArrayOutputStream;
import java.io.Closeable;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.net.URL;
import java.util.ArrayList;
import java.util.HashMap;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;
import android.os.AsyncTask;
import android.os.Bundle;
import android.os.StrictMode;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.Dialog;
import android.app.ProgressDialog;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.Menu;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
public class MainActivity extends Activity {
public static final int DIALOG_DOWNLOAD_JSON_PROGRESS = 0;
private ProgressDialog mProgressDialog;
ArrayList<HashMap<String, Object>> MyArrList;
@SuppressLint("NewApi")
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
// Permission StrictMode
if (android.os.Build.VERSION.SDK_INT > 9) {
StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
StrictMode.setThreadPolicy(policy);
}
// Download JSON File
new DownloadJSONFileAsync().execute();
}
@Override
protected Dialog onCreateDialog(int id) {
switch (id) {
case DIALOG_DOWNLOAD_JSON_PROGRESS:
mProgressDialog = new ProgressDialog(this);
mProgressDialog.setMessage("Downloading.....");
mProgressDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
mProgressDialog.setCancelable(true);
mProgressDialog.show();
return mProgressDialog;
default:
return null;
}
}
// Show All Content
public void ShowAllContent()
{
// listView1
final ListView lstView1 = (ListView)findViewById(R.id.listView1);
lstView1.setAdapter(new ImageAdapter(MainActivity.this,MyArrList));
}
public class ImageAdapter extends BaseAdapter
{
private Context context;
private ArrayList<HashMap<String, Object>> MyArr = new ArrayList<HashMap<String, Object>>();
public ImageAdapter(Context c, ArrayList<HashMap<String, Object>> myArrList)
{
// TODO Auto-generated method stub
context = c;
MyArr = myArrList;
}
public int getCount() {
// TODO Auto-generated method stub
return MyArr.size();
}
public Object getItem(int position) {
// TODO Auto-generated method stub
return position;
}
public long getItemId(int position) {
// TODO Auto-generated method stub
return position;
}
public View getView(int position, View convertView, ViewGroup parent) {
// TODO Auto-generated method stub
LayoutInflater inflater = (LayoutInflater) context
.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
if (convertView == null) {
convertView = inflater.inflate(R.layout.activity_column, null);
}
// ColImage
ImageView imageView = (ImageView) convertView.findViewById(R.id.ColImgPath);
imageView.getLayoutParams().height = 80;
imageView.getLayoutParams().width = 80;
imageView.setPadding(5, 5, 5, 5);
imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
try
{
imageView.setImageBitmap((Bitmap)MyArr.get(position).get("ImageThumBitmap"));
} catch (Exception e) {
// When Error
imageView.setImageResource(android.R.drawable.ic_menu_report_image);
}
// ColImgID
TextView txtImgID = (TextView) convertView.findViewById(R.id.ColImgID);
txtImgID.setPadding(10, 0, 0, 0);
txtImgID.setText("ID : " + MyArr.get(position).get("ImageID").toString());
// ColImgName
TextView txtPicName = (TextView) convertView.findViewById(R.id.ColImgName);
txtPicName.setPadding(50, 0, 0, 0);
txtPicName.setText("Name : " + MyArr.get(position).get("ImageName").toString());
return convertView;
}
}
// Download JSON in Background
public class DownloadJSONFileAsync extends AsyncTask<String, Void, Void> {
protected void onPreExecute() {
super.onPreExecute();
showDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
}
@Override
protected Void doInBackground(String... params) {
// TODO Auto-generated method stub
/** JSON from URL
* [
* {"ImageID":"1","ImageName":"Image 1","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img1_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img1_full.jpg"},
* {"ImageID":"2","ImageName":"Image 2","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img2_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img2_full.jpg"},
* {"ImageID":"3","ImageName":"Image 3","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img3_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img3_full.jpg"},
* {"ImageID":"4","ImageName":"Image 4","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img4_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img4_full.jpg"},
* {"ImageID":"5","ImageName":"Image 5","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img5_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img5_full.jpg"},
* {"ImageID":"6","ImageName":"Image 6","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img6_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img6_full.jpg"}
* ]
*/
String url = "https://www.thaicreate.com/android/getJSON.php";
JSONArray data;
try {
data = new JSONArray(getJSONUrl(url));
MyArrList = new ArrayList<HashMap<String, Object>>();
HashMap<String, Object> map;
for(int i = 0; i < data.length(); i++){
JSONObject c = data.getJSONObject(i);
map = new HashMap<String, Object>();
map.put("ImageID", (String)c.getString("ImageID"));
map.put("ImageName", (String)c.getString("ImageName"));
// Thumbnail Get ImageBitmap To Object
map.put("ImagePathThum", (String)c.getString("ImagePath_Thumbnail"));
map.put("ImageThumBitmap", (Bitmap)loadBitmap(c.getString("ImagePath_Thumbnail")));
// Full (for View Popup)
map.put("ImagePathFull", (String)c.getString("ImagePath_FullPhoto"));
MyArrList.add(map);
}
} catch (JSONException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
return null;
}
protected void onPostExecute(Void unused) {
ShowAllContent(); // When Finish Show Content
dismissDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
removeDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
}
}
/*** Get JSON Code from URL ***/
public String getJSONUrl(String url) {
StringBuilder str = new StringBuilder();
HttpClient client = new DefaultHttpClient();
HttpGet httpGet = new HttpGet(url);
try {
HttpResponse response = client.execute(httpGet);
StatusLine statusLine = response.getStatusLine();
int statusCode = statusLine.getStatusCode();
if (statusCode == 200) { // Download OK
HttpEntity entity = response.getEntity();
InputStream content = entity.getContent();
BufferedReader reader = new BufferedReader(new InputStreamReader(content));
String line;
while ((line = reader.readLine()) != null) {
str.append(line);
}
} else {
Log.e("Log", "Failed to download file..");
}
} catch (ClientProtocolException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
return str.toString();
}
/***** Get Image Resource from URL (Start) *****/
private static final String TAG = "Image";
private static final int IO_BUFFER_SIZE = 4 * 1024;
public static Bitmap loadBitmap(String url) {
Bitmap bitmap = null;
InputStream in = null;
BufferedOutputStream out = null;
try {
in = new BufferedInputStream(new URL(url).openStream(), IO_BUFFER_SIZE);
final ByteArrayOutputStream dataStream = new ByteArrayOutputStream();
out = new BufferedOutputStream(dataStream, IO_BUFFER_SIZE);
copy(in, out);
out.flush();
final byte[] data = dataStream.toByteArray();
BitmapFactory.Options options = new BitmapFactory.Options();
//options.inSampleSize = 1;
bitmap = BitmapFactory.decodeByteArray(data, 0, data.length,options);
} catch (IOException e) {
Log.e(TAG, "Could not load Bitmap from: " + url);
} finally {
closeStream(in);
closeStream(out);
}
return bitmap;
}
private static void closeStream(Closeable stream) {
if (stream != null) {
try {
stream.close();
} catch (IOException e) {
android.util.Log.e(TAG, "Could not close stream", e);
}
}
}
private static void copy(InputStream in, OutputStream out) throws IOException {
byte[] b = new byte[IO_BUFFER_SIZE];
int read;
while ((read = in.read(b)) != -1) {
out.write(b, 0, read);
}
}
/***** Get Image Resource from URL (End) *****/
@Override
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
}
Screenshot
กำลังโหลดข้อมูล และแสดงผล Progress Dialog
หลังจากโหลดเรียบร้อยแล้วจะแสดงข้อมูลทาง ListView และ Progress Dialog ก็จะหายไป
Example 1.1 เมื่อคลิกที่รูปภาพจะแสดง ProgressBar เพื่อโหลดข้อมูลและแสดงรูปภาพหลังจากที่โหลดเรียบร้อยแล้ว
เพ่มไฟล์ custom_fullimage_dialog.xml และแก้ไข MainActivity.java
custom_fullimage_dialog.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/layout_root"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:orientation="horizontal"
android:padding="10dp" >
<ImageView
android:id="@+id/fullimage"
android:layout_width="match_parent"
android:layout_height="320dp" />
<TextView android:id="@+id/custom_fullimage_placename"
android:layout_width="wrap_content" android:layout_height="fill_parent"
android:textColor="#FFF">
</TextView>
</LinearLayout>
MainActivity.java
package com.myapp;
import java.io.BufferedInputStream;
import java.io.BufferedOutputStream;
import java.io.BufferedReader;
import java.io.ByteArrayOutputStream;
import java.io.Closeable;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.net.URL;
import java.util.ArrayList;
import java.util.HashMap;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;
import android.os.AsyncTask;
import android.os.Bundle;
import android.os.StrictMode;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.app.AlertDialog;
import android.app.Dialog;
import android.app.ProgressDialog;
import android.content.Context;
import android.content.DialogInterface;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.Menu;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
public class MainActivity extends Activity {
public static final int DIALOG_DOWNLOAD_JSON_PROGRESS = 0;
public static final int DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS = 1;
private ProgressDialog mProgressDialog;
ArrayList<HashMap<String, Object>> MyArrList;
@SuppressLint("NewApi")
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
// Permission StrictMode
if (android.os.Build.VERSION.SDK_INT > 9) {
StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
StrictMode.setThreadPolicy(policy);
}
// Download JSON File
new DownloadJSONFileAsync().execute();
}
@Override
protected Dialog onCreateDialog(int id) {
switch (id) {
case DIALOG_DOWNLOAD_JSON_PROGRESS:
mProgressDialog = new ProgressDialog(this);
mProgressDialog.setMessage("Downloading.....");
mProgressDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
mProgressDialog.setCancelable(true);
mProgressDialog.show();
return mProgressDialog;
case DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS:
mProgressDialog = new ProgressDialog(this);
mProgressDialog.setMessage("Downloading.....");
mProgressDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
mProgressDialog.setCancelable(true);
mProgressDialog.show();
return mProgressDialog;
default:
return null;
}
}
// Show All Content
public void ShowAllContent()
{
// listView1
final ListView lstView1 = (ListView)findViewById(R.id.listView1);
lstView1.setAdapter(new ImageAdapter(MainActivity.this,MyArrList));
// OnClick
lstView1.setOnItemClickListener(new OnItemClickListener() {
public void onItemClick(AdapterView<?> parent, View v,
int position, long id) {
String strImageName = MyArrList.get(position).get("ImageName").toString();
String strImagePathFull = MyArrList.get(position).get("ImagePathFull").toString();
new DownloadFullPhotoFileAsync().execute(strImageName,strImagePathFull); // Download file Full Photo
}
});
}
// Show Dialog Popup
public void showDialogPopup(String strImageName,Bitmap ImageFullPhoto)
{
final AlertDialog.Builder imageDialog = new AlertDialog.Builder(this);
final LayoutInflater inflater = (LayoutInflater) this.getSystemService(LAYOUT_INFLATER_SERVICE);
View layout = inflater.inflate(R.layout.custom_fullimage_dialog,
(ViewGroup) findViewById(R.id.layout_root));
ImageView image = (ImageView) layout.findViewById(R.id.fullimage);
try
{
image.setImageBitmap(ImageFullPhoto);
} catch (Exception e) {
// When Error
image.setImageResource(android.R.drawable.ic_menu_report_image);
}
imageDialog.setIcon(android.R.drawable.btn_star_big_on);
imageDialog.setTitle("View : " + strImageName);
imageDialog.setView(layout);
imageDialog.setPositiveButton(android.R.string.ok, new DialogInterface.OnClickListener(){
public void onClick(DialogInterface dialog, int which) {
dialog.dismiss();
}
});
imageDialog.create();
imageDialog.show();
}
public class ImageAdapter extends BaseAdapter
{
private Context context;
private ArrayList<HashMap<String, Object>> MyArr = new ArrayList<HashMap<String, Object>>();
public ImageAdapter(Context c, ArrayList<HashMap<String, Object>> myArrList)
{
// TODO Auto-generated method stub
context = c;
MyArr = myArrList;
}
public int getCount() {
// TODO Auto-generated method stub
return MyArr.size();
}
public Object getItem(int position) {
// TODO Auto-generated method stub
return position;
}
public long getItemId(int position) {
// TODO Auto-generated method stub
return position;
}
public View getView(int position, View convertView, ViewGroup parent) {
// TODO Auto-generated method stub
LayoutInflater inflater = (LayoutInflater) context
.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
if (convertView == null) {
convertView = inflater.inflate(R.layout.activity_column, null);
}
// ColImage
ImageView imageView = (ImageView) convertView.findViewById(R.id.ColImgPath);
imageView.getLayoutParams().height = 80;
imageView.getLayoutParams().width = 80;
imageView.setPadding(5, 5, 5, 5);
imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
try
{
imageView.setImageBitmap((Bitmap)MyArr.get(position).get("ImageThumBitmap"));
} catch (Exception e) {
// When Error
imageView.setImageResource(android.R.drawable.ic_menu_report_image);
}
// ColImgID
TextView txtImgID = (TextView) convertView.findViewById(R.id.ColImgID);
txtImgID.setPadding(10, 0, 0, 0);
txtImgID.setText("ID : " + MyArr.get(position).get("ImageID").toString());
// ColImgName
TextView txtPicName = (TextView) convertView.findViewById(R.id.ColImgName);
txtPicName.setPadding(50, 0, 0, 0);
txtPicName.setText("Name : " + MyArr.get(position).get("ImageName").toString());
return convertView;
}
}
// Download JSON in Background
public class DownloadJSONFileAsync extends AsyncTask<String, Void, Void> {
protected void onPreExecute() {
super.onPreExecute();
showDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
}
@Override
protected Void doInBackground(String... params) {
// TODO Auto-generated method stub
/** JSON from URL
* [
* {"ImageID":"1","ImageName":"Image 1","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img1_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img1_full.jpg"},
* {"ImageID":"2","ImageName":"Image 2","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img2_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img2_full.jpg"},
* {"ImageID":"3","ImageName":"Image 3","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img3_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img3_full.jpg"},
* {"ImageID":"4","ImageName":"Image 4","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img4_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img4_full.jpg"},
* {"ImageID":"5","ImageName":"Image 5","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img5_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img5_full.jpg"},
* {"ImageID":"6","ImageName":"Image 6","ImagePath_Thumbnail":"https://www.thaicreate.com/android/img6_thum.jpg" ,"ImagePath_FullPhoto":"https://www.thaicreate.com/android/img6_full.jpg"}
* ]
*/
String url = "https://www.thaicreate.com/android/getJSON.php";
JSONArray data;
try {
data = new JSONArray(getJSONUrl(url));
MyArrList = new ArrayList<HashMap<String, Object>>();
HashMap<String, Object> map;
for(int i = 0; i < data.length(); i++){
JSONObject c = data.getJSONObject(i);
map = new HashMap<String, Object>();
map.put("ImageID", (String)c.getString("ImageID"));
map.put("ImageName", (String)c.getString("ImageName"));
// Thumbnail Get ImageBitmap To Object
map.put("ImagePathThum", (String)c.getString("ImagePath_Thumbnail"));
map.put("ImageThumBitmap", (Bitmap)loadBitmap(c.getString("ImagePath_Thumbnail")));
// Full (for View Popup)
map.put("ImagePathFull", (String)c.getString("ImagePath_FullPhoto"));
MyArrList.add(map);
}
} catch (JSONException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
return null;
}
protected void onPostExecute(Void unused) {
ShowAllContent(); // When Finish Show Content
dismissDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
removeDialog(DIALOG_DOWNLOAD_JSON_PROGRESS);
}
}
// Download Full Photo in Background
public class DownloadFullPhotoFileAsync extends AsyncTask<String, Void, Void> {
String strImageName = "";
String ImageFullPhoto = "";
Bitmap ImageFullBitmap = null;
protected void onPreExecute() {
super.onPreExecute();
showDialog(DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS);
}
@Override
protected Void doInBackground(String... params) {
strImageName = params[0];
ImageFullPhoto = params[1];
ImageFullBitmap = (Bitmap)loadBitmap(ImageFullPhoto);
return null;
}
protected void onPostExecute(Void unused) {
showDialogPopup(strImageName,ImageFullBitmap); // When Finish Show Popup
dismissDialog(DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS);
removeDialog(DIALOG_DOWNLOAD_FULL_PHOTO_PROGRESS);
}
}
/*** Get JSON Code from URL ***/
public String getJSONUrl(String url) {
StringBuilder str = new StringBuilder();
HttpClient client = new DefaultHttpClient();
HttpGet httpGet = new HttpGet(url);
try {
HttpResponse response = client.execute(httpGet);
StatusLine statusLine = response.getStatusLine();
int statusCode = statusLine.getStatusCode();
if (statusCode == 200) { // Download OK
HttpEntity entity = response.getEntity();
InputStream content = entity.getContent();
BufferedReader reader = new BufferedReader(new InputStreamReader(content));
String line;
while ((line = reader.readLine()) != null) {
str.append(line);
}
} else {
Log.e("Log", "Failed to download file..");
}
} catch (ClientProtocolException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
return str.toString();
}
/***** Get Image Resource from URL (Start) *****/
private static final String TAG = "Image";
private static final int IO_BUFFER_SIZE = 4 * 1024;
public static Bitmap loadBitmap(String url) {
Bitmap bitmap = null;
InputStream in = null;
BufferedOutputStream out = null;
try {
in = new BufferedInputStream(new URL(url).openStream(), IO_BUFFER_SIZE);
final ByteArrayOutputStream dataStream = new ByteArrayOutputStream();
out = new BufferedOutputStream(dataStream, IO_BUFFER_SIZE);
copy(in, out);
out.flush();
final byte[] data = dataStream.toByteArray();
BitmapFactory.Options options = new BitmapFactory.Options();
//options.inSampleSize = 1;
bitmap = BitmapFactory.decodeByteArray(data, 0, data.length,options);
} catch (IOException e) {
Log.e(TAG, "Could not load Bitmap from: " + url);
} finally {
closeStream(in);
closeStream(out);
}
return bitmap;
}
private static void closeStream(Closeable stream) {
if (stream != null) {
try {
stream.close();
} catch (IOException e) {
android.util.Log.e(TAG, "Could not close stream", e);
}
}
}
private static void copy(InputStream in, OutputStream out) throws IOException {
byte[] b = new byte[IO_BUFFER_SIZE];
int read;
while ((read = in.read(b)) != -1) {
out.write(b, 0, read);
}
}
/***** Get Image Resource from URL (End) *****/
@Override
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
}
Screenshot
คลิกแต่ล่ะรายการ
กำลังโหลดภาที่เป็น Full Images
แสดงภาพ Full Image จากเว็บไซต์
AsyncTask and ProgressDialog (showDialog, dismissDialog, removeDialog : Deprecated)
|
