Android PHP/MySQL (UTF-8) : รับ-ส่ง ภาษาไทย ระหว่าง Android กับ MySQL |
Android PHP/MySQL (UTF-8) : รับ-ส่ง ภาษาไทย ระหว่าง Android กับ MySQL ตัวอย่างการเขียน Android ติดต่อกับ PHP และ MySQL Database ผ่าน HttpPost ที่อยู่ในรูปแบบของ URL Website จากแหล่งต่าง ๆ โดย Android จะใช้ HttpPost และ HttpGet ในรูปแบบของข้อความภาษาไทย (Thai Wording) โดยจะใช้รูปแบบการรับ-ส่งข้อมูลแบบ (UTF-8 Encoding)
ในการส่ง Post ที่เป็นภาษาไทยให้เพื่มคำสั่ง httpPost.setEntity(new UrlEncodedFormEntity(params,"UTF-8")); เข้าไปใน HttpPost
และที่ PHP กับ MySQL จะต้องใช้ mysql_query("SET NAMES UTF8");
Basic Android and JSON
AndroidManifest.xml
<uses-permission android:name="android.permission.INTERNET" />
ในการเขียน Android เพื่อติดต่อกับ Internet จะต้องกำหนด Permission ในส่วนนี้ด้วยทุกครั้ง
Example การรับส่งภาษาไทยระหว่าง Android กับ PHP/MySQL
Web Server (PHP and MySQL)
member
CREATE TABLE `member` (
`MemberID` int(2) NOT NULL auto_increment,
`Username` varchar(50) NOT NULL,
`Password` varchar(50) NOT NULL,
`Name` varchar(50) NOT NULL,
`Tel` varchar(50) NOT NULL,
`Email` varchar(150) NOT NULL,
PRIMARY KEY (`MemberID`),
UNIQUE KEY `Username` (`Username`),
UNIQUE KEY `Email` (`Email`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8 AUTO_INCREMENT=4 ;
--
-- Dumping data for table `member`
--
INSERT INTO `member` VALUES (1, 'weerachai', 'weerachai@1', 'Weerachai Nukitram', '0819876107', '[email protected]');
INSERT INTO `member` VALUES (2, 'adisorn', 'adisorn@2', 'Adisorn Bunsong', '021978032', '[email protected]');
INSERT INTO `member` VALUES (3, 'surachai', 'surachai@3', 'Surachai Sirisart', '0876543210', '[email protected]');
โครงสร้างของข้อมูล MySQL Database
saveADDData.php
<?php
$objConnect = mysql_connect("localhost","root","root");
$objDB = mysql_select_db("mydatabase");
mysql_query("SET NAMES UTF8");
/*** for Sample
$_POST["sUsername"] = "a";
$_POST["sPassword"] = "b";
$_POST["sName"] = "c";
$_POST["sEmail"] = "d";
$_POST["sTel"] = "e";
*/
$strUsername = $_POST["sUsername"];
$strPassword = $_POST["sPassword"];
$strName = $_POST["sName"];
$strEmail = $_POST["sEmail"];
$strTel = $_POST["sTel"];
/*** Check Username Exists ***/
$strSQL = "SELECT * FROM member WHERE Username = '".$strUsername."' ";
$objQuery = mysql_query($strSQL);
$objResult = mysql_fetch_array($objQuery);
if($objResult)
{
$arr['StatusID'] = "0";
$arr['Error'] = "Username Exists!";
echo json_encode($arr);
exit();
}
/*** Check Email Exists ***/
$strSQL = "SELECT * FROM member WHERE Email = '".$strEmail."' ";
$objQuery = mysql_query($strSQL);
$objResult = mysql_fetch_array($objQuery);
if($objResult)
{
$arr['StatusID'] = "0";
$arr['Error'] = "Email Exists!";
echo json_encode($arr);
exit();
}
/*** Insert ***/
$strSQL = "INSERT INTO member (Username,Password,Name,Email,Tel)
VALUES (
'".$strUsername."',
'".$strPassword."',
'".$strName."',
'".$strEmail."',
'".$strTel."'
)
";
$objQuery = mysql_query($strSQL);
if(!$objQuery)
{
$arr['StatusID'] = "0";
$arr['Error'] = "Cannot save data!";
}
else
{
$arr['StatusID'] = "1";
$arr['Error'] = "";
}
/**
$arr['StatusID'] // (0=Failed , 1=Complete)
$arr['Error'] // Error Message
*/
mysql_close($objConnect);
echo json_encode($arr);
?>
Android Project

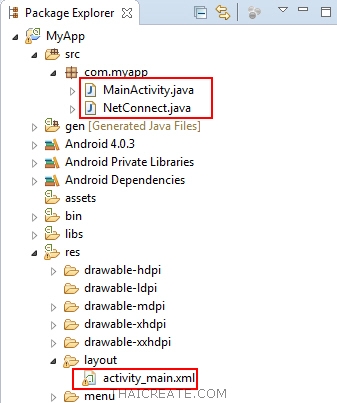

โครงสร้างของไฟล์ประกอบด้วย 3 ไฟล์คือ NetConnect.java, MainActivity.java และ activity_main.xml

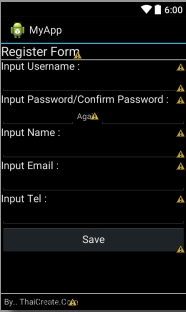

activity_main.xml
<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/tableLayout1"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<TableRow
android:id="@+id/tableRow1"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >
<TextView
android:id="@+id/textView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:gravity="center"
android:text="Register Form "
android:layout_span="1"
android:textAppearance="?android:attr/textAppearanceLarge" />
</TableRow>
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<TableLayout
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_weight="0.1"
android:orientation="horizontal">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Username :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtUsername"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:ems="10" >
</EditText>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Password/Confirm Password :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<TableRow>
<EditText
android:id="@+id/txtPassword"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:ems="6"
android:inputType="textPassword" >
</EditText>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text=" Again " />
<EditText
android:id="@+id/txtConPassword"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:ems="7"
android:inputType="textPassword" >
</EditText>
</TableRow>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Name :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtName"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:ems="10" >
</EditText>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Email :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtEmail"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:inputType="textEmailAddress"
android:ems="10" >
</EditText>
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Input Tel :"
android:textAppearance="?android:attr/textAppearanceMedium" />
<EditText
android:id="@+id/txtTel"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:inputType="phone"
android:ems="10" >
</EditText>
<Button
android:id="@+id/btnSave"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Save" />
</TableLayout >
<View
android:layout_height="1dip"
android:background="#CCCCCC" />
<LinearLayout
android:id="@+id/LinearLayout1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="5dip" >
<TextView
android:id="@+id/textView2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="By.. ThaiCreate.Com" />
</LinearLayout>
</TableLayout>
MainActivity.java
package com.myapp;
import java.util.ArrayList;
import java.util.List;
import org.apache.http.NameValuePair;
import org.apache.http.message.BasicNameValuePair;
import org.json.JSONException;
import org.json.JSONObject;
import android.os.Bundle;
import android.os.StrictMode;
import android.app.Activity;
import android.app.AlertDialog;
import android.view.View;
import android.view.Menu;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class MainActivity extends Activity {
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
// Permission StrictMode
if (android.os.Build.VERSION.SDK_INT > 9) {
StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
StrictMode.setThreadPolicy(policy);
}
// btnSave
final Button btnSave = (Button) findViewById(R.id.btnSave);
// Perform action on click
btnSave.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
if(SaveData())
{
// When Save Complete
}
}
});
}
public boolean SaveData()
{
// txtUsername,txtPassword,txtName,txtEmail,txtTel
final EditText txtUsername = (EditText)findViewById(R.id.txtUsername);
final EditText txtPassword = (EditText)findViewById(R.id.txtPassword);
final EditText txtConPassword = (EditText)findViewById(R.id.txtConPassword);
final EditText txtName = (EditText)findViewById(R.id.txtName);
final EditText txtEmail = (EditText)findViewById(R.id.txtEmail);
final EditText txtTel = (EditText)findViewById(R.id.txtTel);
// Dialog
final AlertDialog.Builder ad = new AlertDialog.Builder(this);
ad.setTitle("Error! ");
ad.setIcon(android.R.drawable.btn_star_big_on);
ad.setPositiveButton("Close", null);
// Check Username
if(txtUsername.getText().length() == 0)
{
ad.setMessage("Please input [Username] ");
ad.show();
txtUsername.requestFocus();
return false;
}
// Check Password
if(txtPassword.getText().length() == 0 || txtConPassword.getText().length() == 0 )
{
ad.setMessage("Please input [Password/Confirm Password] ");
ad.show();
txtPassword.requestFocus();
return false;
}
// Check Password and Confirm Password (Match)
if(!txtPassword.getText().toString().equals(txtConPassword.getText().toString()))
{
ad.setMessage("Password and Confirm Password Not Match! ");
ad.show();
txtConPassword.requestFocus();
return false;
}
// Check Name
if(txtName.getText().length() == 0)
{
ad.setMessage("Please input [Name] ");
ad.show();
txtName.requestFocus();
return false;
}
// Check Email
if(txtEmail.getText().length() == 0)
{
ad.setMessage("Please input [Email] ");
ad.show();
txtEmail.requestFocus();
return false;
}
// Check Tel
if(txtTel.getText().length() == 0)
{
ad.setMessage("Please input [Tel] ");
ad.show();
txtTel.requestFocus();
return false;
}
String url = "https://www.thaicreate.com/android/saveADDData.php";
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("sUsername", txtUsername.getText().toString()));
params.add(new BasicNameValuePair("sPassword", txtPassword.getText().toString()));
params.add(new BasicNameValuePair("sName", txtName.getText().toString()));
params.add(new BasicNameValuePair("sEmail", txtEmail.getText().toString()));
params.add(new BasicNameValuePair("sTel", txtTel.getText().toString()));
/** Get result from Server (Return the JSON Code)
* StatusID = ? [0=Failed,1=Complete]
* Error = ? [On case error return custom error message]
*
* Eg Save Failed = {"StatusID":"0","Error":"Email Exists!"}
* Eg Save Complete = {"StatusID":"1","Error":""}
*/
String resultServer = NetConnect.getHttpPost(url,params);
/*** Default Value ***/
String strStatusID = "0";
String strError = "Unknow Status!";
JSONObject c;
try {
c = new JSONObject(resultServer);
strStatusID = c.getString("StatusID");
strError = c.getString("Error");
} catch (JSONException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
// Prepare Save Data
if(strStatusID.equals("0"))
{
ad.setMessage(strError);
ad.show();
}
else
{
Toast.makeText(MainActivity.this, "Save Data Successfully", Toast.LENGTH_SHORT).show();
txtUsername.setText("");
txtPassword.setText("");
txtConPassword.setText("");
txtName.setText("");
txtEmail.setText("");
txtTel.setText("");
}
return true;
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
}
NetConnect.java
package com.myapp;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.util.List;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.StatusLine;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.impl.client.DefaultHttpClient;
import android.util.Log;
public class NetConnect {
public static String getHttpPost(String url,List<NameValuePair> params) {
StringBuilder str = new StringBuilder();
HttpClient client = new DefaultHttpClient();
HttpPost httpPost = new HttpPost(url);
try {
httpPost.setEntity(new UrlEncodedFormEntity(params,"UTF-8"));
HttpResponse response = client.execute(httpPost);
StatusLine statusLine = response.getStatusLine();
int statusCode = statusLine.getStatusCode();
if (statusCode == 200) { // Status OK
HttpEntity entity = response.getEntity();
InputStream content = entity.getContent();
BufferedReader reader = new BufferedReader(new InputStreamReader(content));
String line;
while ((line = reader.readLine()) != null) {
str.append(line);
}
} else {
Log.e("Log", "Failed to download result..");
}
} catch (ClientProtocolException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
return str.toString();
}
public static String getHttpGet(String url) {
StringBuilder str = new StringBuilder();
HttpClient client = new DefaultHttpClient();
HttpGet httpGet = new HttpGet(url);
try {
HttpResponse response = client.execute(httpGet);
StatusLine statusLine = response.getStatusLine();
int statusCode = statusLine.getStatusCode();
if (statusCode == 200) { // Download OK
HttpEntity entity = response.getEntity();
InputStream content = entity.getContent();
BufferedReader reader = new BufferedReader(new InputStreamReader(content));
String line;
while ((line = reader.readLine()) != null) {
str.append(line);
}
} else {
Log.e("Log", "Failed to download result..");
}
} catch (ClientProtocolException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
return str.toString();
}
}
Screenshot

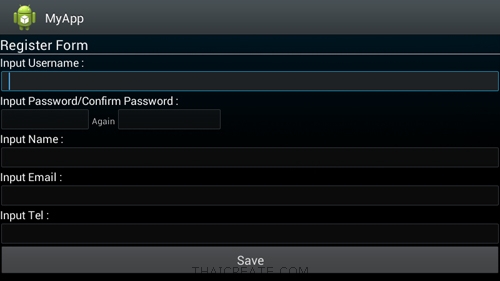

แสดงหน้าแรกของ App

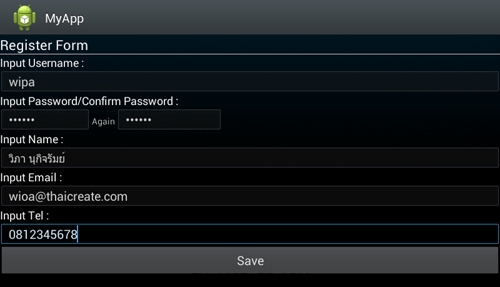

สดทอบการกรอกข้อมูลเพื่อสมัครสมาชิก โดยทดสอบพิมพ์ชื่อภาษาไทย
ข้อมูลที่ถูกส่งไปยัง PHP และ MySQL เป็นภาษาไทยถูกต้อง
Android HttpGet and HttpPost
Basic Android and JSON
Basic Android and Web Service
|
ช่วยกันสนับสนุนรักษาเว็บไซต์ความรู้แห่งนี้ไว้ด้วยการสนับสนุน
Load balance : Server 00
