01.<?php
02.$conn= mysqli_connect("localhost","root","","test") or die("Error: " . mysqli_error($con));
03.
04.mysqli_query($conn, "SET NAMES 'utf8' ");
05.
06.$lineX = array();
07.$lineY = array();

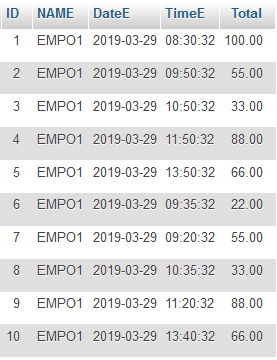

08.$sql = "SELECT NAME,TimeE,Total,DateE FROM line WHERE DateE = '2019-03-29' AND NAME='EMPO1' ORDER BY TimeE ASC";
09.
10.$result = mysqli_query($conn, $sql);
11.while ($row= mysqli_fetch_array($result,MYSQLI_ASSOC)) {
12.
13.array_push($lineY,$row[Total]);
14.array_push($lineX,$row[TimeE]);
15.}
16.?>
17.<!DOCTYPE HTML>
18.<html>
19.<head>
20.<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
21.<title>กราฟแสดงข้อมูลการทำงาน</title>
25.<script>
26. $(function () {
27. $('#container').highcharts({
28. chart: {
29. type: 'line'
30. },
31. title: {
32. text: 'แสดงกราฟชั่วโมงทำงาน '
33. },
34. subtitle: {
35. text: ''
36. },
37. xAxis: {
38. categories: ['<?php echo implode("','", $lineX); ?>']
39. },
40. yAxis: {
41. title: {
42. text: 'จำนวนยอดผลิต'
43. }
44. },
45. tooltip: {
46. enabled: false,
47. formatter: function() {
48. return '<b>'+ this.series.name +'</b><br/>'+
49. this.x +': '+ this.y ;
50. }
51. },
52. legend: {
53. layout: 'vertical',
54. align: 'right',
55. verticalAlign: 'top',
56. x: -10,
57. y: 100,
58. borderWidth: 0
59. },
60. plotOptions: {
61. line: {
62. dataLabels: {
63. enabled: true
64. },
65. enableMouseTracking: false
66. }
67. },
68. series: [{
69. name: 'จำนวน',
70. data: [<?php echo implode(',', $lineY) ?>]
71. }]
72. });
73. });
74.</script>
75.
76.</head>
77.<body>
78.
79.<div id="container" style="min-width: 320px; height: 380px; margin: 0 auto"></div>
80.
81.</body>
82.</html>
